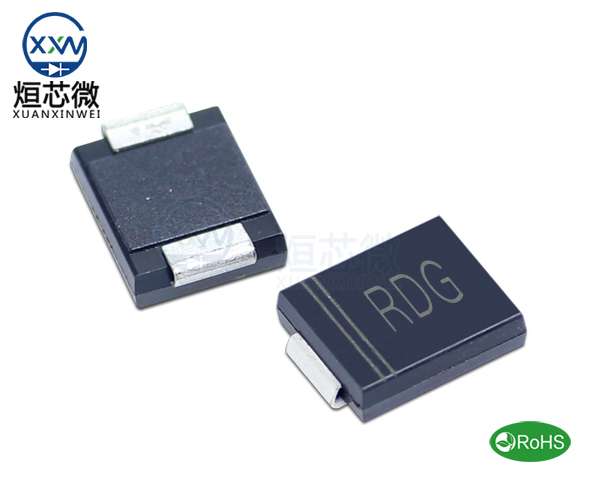

SMDJ6.0A,SMDJ6.0A瞬態抑制二極管,SMDJ6.0A二極管參數
SMDJ6.0A瞬態抑制二極管,SMDJ6.0A功率3000W,SMDJ6.0A絲印RDG,6V SMC封裝TVS二極管規格書參數,SMDJ6.0A單向TVS管
SMDJ6.0A瞬態抑制二極管,SMDJ6.0A功率3000W,SMDJ6.0A絲印RDG,6V SMC封裝TVS二極管規格書參數,SMDJ6.0A單向TVS管
SMDJ6.0A SMA封裝參數:點擊查看
SMDJ6.0A封裝為DO-214AB/SMC
6V瞬態抑制二極管參數如下:
DEVICE MARKING CODE 絲印：RDG
Peak Pulse Power Dissipation on 功率損耗Pppm：3000W
REVERSE STANDOFF VOLTAGE VRWM (V) 反向?qū)χ烹妷海?V
BREAKDOWN VOLTAGE VBR (V) MIN. @ IT 崩潰電壓（最?。?.67V
BREAKDOWN VOLTAGE VBR (V) MAX. @ IT 崩潰電壓（最大）：7.37V
TEST CURRENT (IT) mA 測試電流：10mA
MAXIMUM CLAMPING VOLTAGE @IPP VC (V) 最大嵌位電壓：10.3V
PEAK PULSE CURRENT IPP (A) 峰值脈沖電流：291.3A
REVERSE LEAKAGE @ VRWM IR (μA) 反向漏電：800μA
Operating Junction Temperature and Storage Temperature Range 工作結溫度和存儲溫度范圍 Tj, Tstg：-65~+150℃
SMDJ6.0A瞬態抑制二極管，DO-214AB/SMC封裝尺寸：
